VT-GH-2500

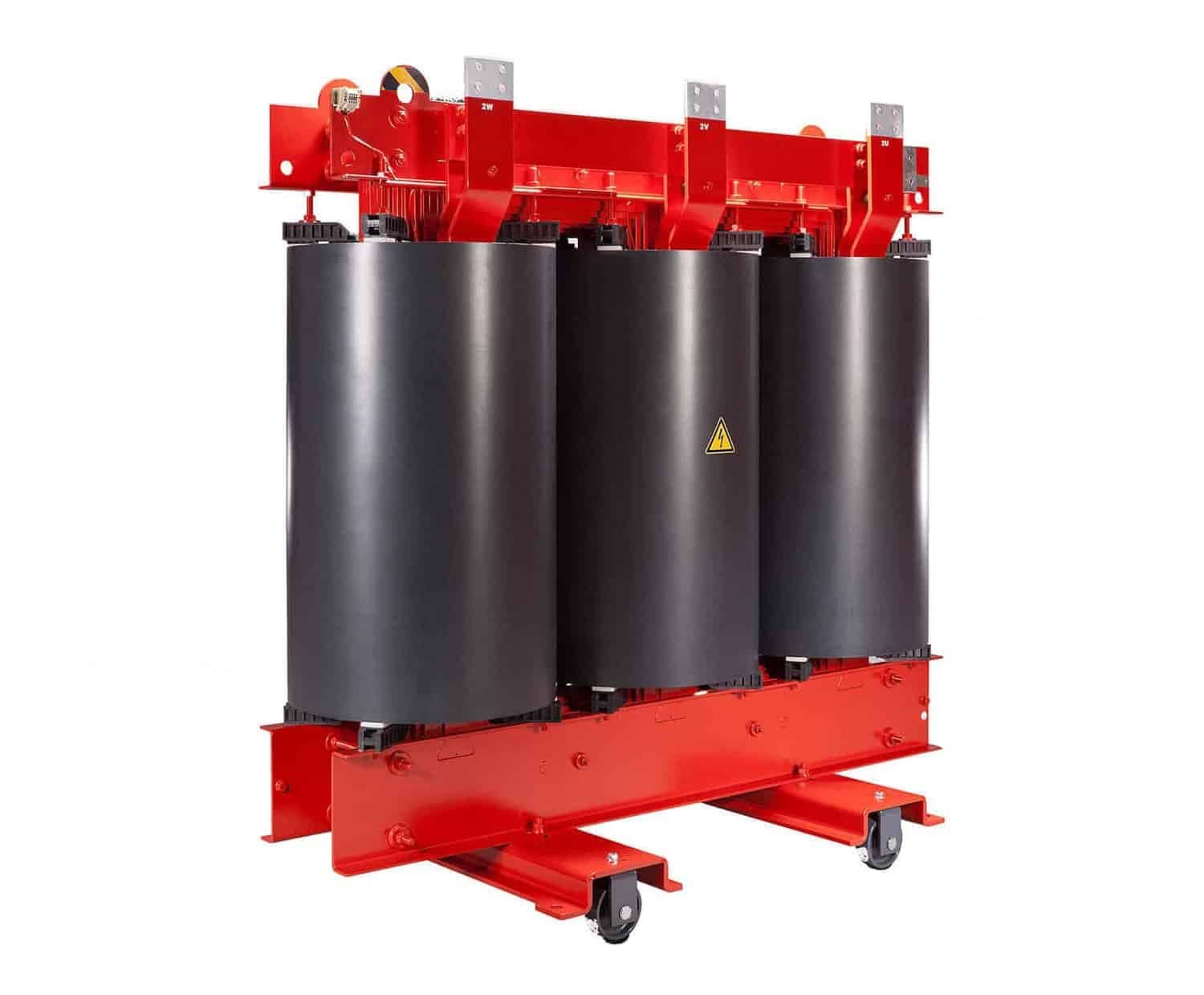

Cast resin transformer 2500 kVA, 20/0.4 kV
Cast resin dry-type transformer (AN) for indoor installation in buildings, industry and infrastructure. Classes E2/C2/F1, EU 548/2014 Tier 2 compliant, delivered with test report.
🔒 Prices visible after registration and approval
Technical data
| Rated power | 2500 kVA |
|---|---|
| Primary voltage | 20 kV |
| Secondary voltage | 0.4 kV |
| Cooling | AN |
| Standard | EN 50588-1 / IEC 60076, EU 548/2014 Tier 2 |
| Vector group | Dyn5 |
| Impedance voltage uk | 6 % |
| No-load losses P0 | 3100 W |
| Load losses Pk | 19000 W |
| Frequency | 50 Hz |
| Tapping range | ±2×2,5 % |
| Classes (fire/environment/climate) | E2 / C2 / F1 |
| Total weight | 3900 kg |
| Dimensions (L × W × H) | 2100 × 1300 × 2300 mm |
| Lead time | approx. 6 weeks |
